MemoPart™Defeito atrial septal (ASD) Occluder Detalhes
Dispositivo oclusor ASD Descrição

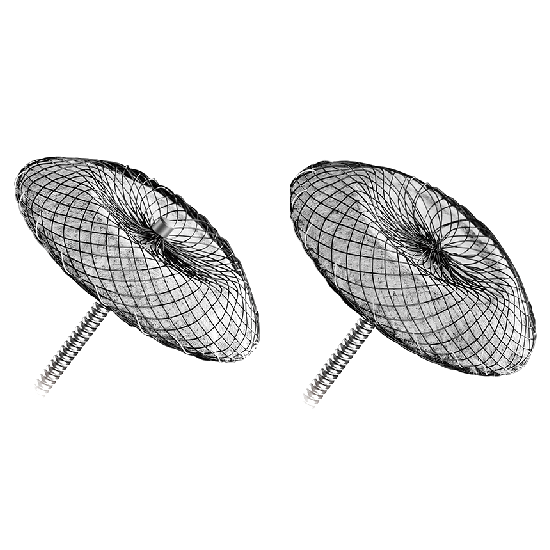

MemoPartTM ASD Occluder é um dispositivo de disco duplo autoexpansível feito de malha de nitinol, bucha (s) de aço inoxidável, linha de sutura e membrana de poliéster. O dispositivo tem um disco atrial esquerdo (LA), um disco atrial direito (RA) e uma cintura curta correspondente ao tamanho do defeito do septo atrial (TEA). A membrana do tecido de poliéster é firmemente costurada dentro de cada disco e a cintura por linha de sutura para garantir a oclusão ideal. O dispositivo é visível sob raios-X.
Indicações para Uso Dispositivo oclusor ASD
Pacientes elegíveis para fechamento do TEA apresentam evidência ecocardiográfica de defeito do septo atrial ostium secundum e evidência clínica de sobrecarga de volume ventricular direito (i.e., 1.5:1 grau de shunt da esquerda para a direita ou aumento do RV).
Informações do Pedido

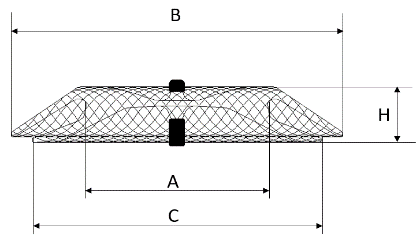

(A) Tipo FQFDQ

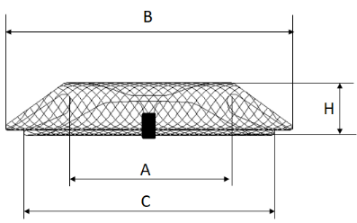

(B) Tipo WTFQFDQ
Catálogo n ° | Tamanho do dispositivo | A Conectando cintura diâmetro (Mm) | B Diâmetro do disco LA (Mm) | C Diâmetro do disco RA (Mm) | H Altura (Mm) |
FQFDQ-Ⅰ 06 | 06 | 6,0 ± 0,5 | 16,0 ± 1,0 | 14,0 ± 1,0 | 5,5 ± 0,5 |
FQFDQ-Ⅰ 07 | 07 | 7,0 ± 0,5 | 21,0 ± 1,0 | 17,0 ± 1,0 | 5,5 ± 0,5 |
FQFDQ-Ⅰ 08 | 08 | 8,0 ± 0,5 | 18,0 ± 1,0 | 16,0 ± 1,0 | 5,5 ± 0,5 |
FQFDQ-Ⅰ 09 | 09 | 9,0 ± 0,5 | 23,0 ± 1,0 | 19,0 ± 1,0 | 5,5 ± 0,5 |
FQFDQ-Ⅰ 10 | 10 | 10,0 ± 0,5 | 20,0 ± 1,0 | 18,0 ± 1,0 | 5,5 ± 0,5 |
FQFDQ-Ⅰ 11 | 11 | 11,0 ± 0,6 | 25,0 ± 1,25 | 21,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 12 | 12 | 12,0 ± 0,6 | 22,0 ± 1,25 | 20,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 13 | 13 | 13,0 ± 0,6 | 27,0 ± 1,25 | 23,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 14 | 14 | 14,0 ± 0,6 | 24,0 ± 1,25 | 22,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 15 | 15 | 15,0 ± 0,6 | 29,0 ± 1,25 | 25,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 16 | 16 | 16,0 ± 0,6 | 30,0 ± 1,5 | 26,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 17 | 17 | 17,0 ± 0,75 | 31,0 ± 1,5 | 27,0 ± 1,25 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 18 | 18 | 18,0 ± 0,75 | 32,0 ± 1,5 | 28,0 ± 1,5 | 5,5 ± 0,75 |
QQFDQ-Ⅰ 19 | 19 | 19,0 ± 0,75 | 33,0 ± 1,5 | 29,0 ± 1,5 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 20 | 20 | 20,0 ± 0,75 | 34,0 ± 1,5 | 30,0 ± 1,5 | 5,5 ± 0,75 |
FQFDQ-Ⅰ 22 | 22 | 22,0 ± 1,0 | 36,0 ± 1,75 | 32,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 24 | 24 | 24,0 ± 1,0 | 38,0 ± 1,75 | 34,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 26 | 26 | 26,0 ± 1,0 | 40,0 ± 1,75 | 36,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 28 | 28 | 28,0 ± 1,0 | 42,0 ± 1,75 | 38,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 30 | 30 | 30,0 ± 1,0 | 44,0 ± 1,75 | 40,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 32 | 32 | 32,0 ± 1,0 | 47,0 ± 1,75 | 42,0 ± 1,75 | 5,5 ± 1,0 |
QQFDQ-Ⅰ 34 | 34 | 34,0 ± 1,0 | 49,0 ± 1,75 | 44,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 36 | 36 | 36,0 ± 1,0 | 51,0 ± 1,75 | 46,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 38 | 38 | 38,0 ± 1,0 | 54,0 ± 1,75 | 50,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 40 | 40 | 40,0 ± 1,0 | 56,0 ± 1,75 | 52,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 42 | 42 | 42,0 ± 1,0 | 58,0 ± 1,75 | 54,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 44 | 44 | 44,0 ± 1,0 | 60,0 ± 1,75 | 56,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 46 | 46 | 46,0 ± 1,0 | 62,0 ± 1,75 | 58,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 48 | 48 | 48,0 ± 1,0 | 64,0 ± 1,75 | 60,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅰ 50 | 50 | 50,0 ± 1,0 | 66,0 ± 1,75 | 62,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 06 | 06 | 6,0 ± 0,5 | 16,0 ± 1,0 | 14,0 ± 1,0 | 5,5 ± 0,5 |
WTFQFDQ-Ⅰ 07 | 07 | 7,0 ± 0,5 | 21,0 ± 1,0 | 17,0 ± 1,0 | 5,5 ± 0,5 |
WTFQFDQ-Ⅰ 08 | 08 | 8,0 ± 0,5 | 18,0 ± 1,0 | 16,0 ± 1,0 | 5,5 ± 0,5 |
WTFQFDQ-Ⅰ 09 | 09 | 9,0 ± 0,5 | 23,0 ± 1,0 | 19,0 ± 1,0 | 5,5 ± 0,5 |
WTFQFDQ-Ⅰ 10 | 10 | 10,0 ± 0,5 | 20,0 ± 1,0 | 18,0 ± 1,0 | 5,5 ± 0,5 |
WTFQFDQ-Ⅰ 11 | 11 | 11,0 ± 0,6 | 25,0 ± 1,5 | 21,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 12 | 12 | 12,0 ± 0,6 | 22,0 ± 1,25 | 20,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 13 | 13 | 13,0 ± 0,6 | 27,0 ± 1,25 | 23,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 14 | 14 | 14,0 ± 0,6 | 24,0 ± 1,25 | 22,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 15 | 15 | 15,0 ± 0,6 | 29,0 ± 1,25 | 25,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 16 | 16 | 16,0 ± 0,6 | 30,0 ± 1,5 | 26,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 17 | 17 | 17,0 ± 0,75 | 31,0 ± 1,5 | 27,0 ± 1,25 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 18 | 18 | 18,0 ± 0,75 | 32,0 ± 1,5 | 28,0 ± 1,5 | 5,5 ± 0,75 |
WTQQFDQ-Ⅰ 19 | 19 | 19,0 ± 0,75 | 33,0 ± 1,5 | 29,0 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 20 | 20 | 20,0 ± 0,75 | 34,0 ± 1,5 | 30,0 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ-Ⅰ 22 | 22 | 22,0 ± 1,0 | 36,0 ± 1,75 | 32,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 24 | 24 | 24,0 ± 1,0 | 38,0 ± 1,75 | 34,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 26 | 26 | 26,0 ± 1,0 | 40,0 ± 1,75 | 36,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 28 | 28 | 28,0 ± 1,0 | 42,0 ± 1,75 | 38,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 30 | 30 | 30,0 ± 1,0 | 44,0 ± 1,75 | 40,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 32 | 32 | 32,0 ± 1,0 | 48,0 ± 1,75 | 42,0 ± 1,75 | 5,5 ± 1,0 |
WTQQFDQ-Ⅰ 34 | 34 | 34,0 ± 1,0 | 50,0 ± 1,75 | 44,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 36 | 36 | 36,0 ± 1,0 | 52,0 ± 1,75 | 46,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 38 | 38 | 38,0 ± 1,0 | 54,0 ± 1,75 | 50,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 40 | 40 | 40,0 ± 1,0 | 56,0 ± 1,75 | 52,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 42 | 42 | 42,0 ± 1,0 | 58,0 ± 1,75 | 54,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 44 | 44 | 44,0 ± 1,0 | 60,0 ± 1,75 | 56,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 46 | 46 | 46,0 ± 1,0 | 62,0 ± 1,75 | 58,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 48 | 48 | 48,0 ± 1,0 | 64,0 ± 1,75 | 60,0 ± 1,75 | 5,5 ± 1,0 |
WTFQFDQ-Ⅰ 50 | 50 | 50,0 ± 1,0 | 66,0 ± 1,75 | 62,0 ± 1,75 | 5,5 ± 1,0 |
FQFDQ-Ⅱ 06 | 06 | 6 ± 0,75 | 30 ± 1,5 | 22 ± 1,5 | 5,5 ± 0,5 |
FQFDQ-Ⅱ 08 | 08 | 8 ± 0,75 | 32 ± 1,5 | 24 ± 1,5 | 5,5 ± 0,5 |
FQFDQ-Ⅱ 10 | 10 | 10 ± 0,75 | 34 ± 1,5 | 26 ± 1,5 | 5,5 ± 0,5 |
FQFDQ-Ⅱ 12 | 12 | 12 ± 0,75 | 36 ± 1,5 | 28 ± 1,5 | 5,5 ± 0,5 |
FQFDQ-Ⅱ 14 | 14 | 14 ± 0,75 | 38 ± 1,5 | 30 ± 1,5 | 5,5 ± 0,5 |
FQFDQ-Ⅱ 16 | 16 | 16 ± 0,75 | 40 ± 1,5 | 32 ± 1,5 | 5,5 ± 0,75 |
FQFDQ-Ⅱ 18 | 18 | 18 ± 0,75 | 42 ± 1,5 | 34 ± 1,5 | 5,5 ± 0,75 |
FQFDQ-Ⅱ 20 | 20 | 20 ± 0,75 | 44 ± 1,5 | 36 ± 1,5 | 5,5 ± 0,75 |
FQFDQ-Ⅱ 22 | 22 | 22 ± 0,75 | 46 ± 1,5 | 38 ± 1,5 | 5,5 ± 0,75 |
FQFDQ-Ⅱ 24 | 24 | 24 ± 0,75 | 48 ± 1,5 | 40 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ Ⅱ 06 | 06 | 6 ± 0,75 | 30 ± 1,5 | 22 ± 1,5 | 5,5 ± 0,5 |
WTFQFDQ-Ⅱ 08 | 08 | 8 ± 0,75 | 32 ± 1,5 | 24 ± 1,5 | 5,5 ± 0,5 |
WTFQFDQ Ⅱ 10 | 10 | 10 ± 0,75 | 34 ± 1,5 | 26 ± 1,5 | 5,5 ± 0,5 |
WTFQFDQ Ⅱ 12 | 12 | 12 ± 0,75 | 36 ± 1,5 | 28 ± 1,5 | 5,5 ± 0,5 |
WTFQFDQ Ⅱ 14 | 14 | 14 ± 0,75 | 38 ± 1,5 | 30 ± 1,5 | 5,5 ± 0,5 |
WTFQFDQ-Ⅱ 16 | 16 | 16 ± 0,75 | 40 ± 1,5 | 32 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ-Ⅱ 18 | 18 | 18 ± 0,75 | 42 ± 1,5 | 34 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ Ⅱ 20 | 20 | 20 ± 0,75 | 44 ± 1,5 | 36 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ Ⅱ 22 | 22 | 22 ± 0,75 | 46 ± 1,5 | 38 ± 1,5 | 5,5 ± 0,75 |
WTFQFDQ Ⅱ 24 | 24 | 24 ± 0,75 | 48 ± 1,5 | 40 ± 1,5 | 5,5 ± 0,75 |
